Standard CTP Off Line
Sheeting Machine
| Specifications | |
|---|---|
| Maximum web width | 1400mm (55”) |
| Cut off range | 400 – 1500mm (Min. 360mm & Max. 2000mm optional) |
| Maximum mechanical speed | 300 M/min |
| Cut to register accuracy | +/- 0.1mm throughout speed change |
| Materials | Film, Paper & Paper or Foil Laminated |
| Paper weight (cut to register) | 30 – 400 gsm single web |
| Paper weight (multi webs) | 30 – 500 gsm |

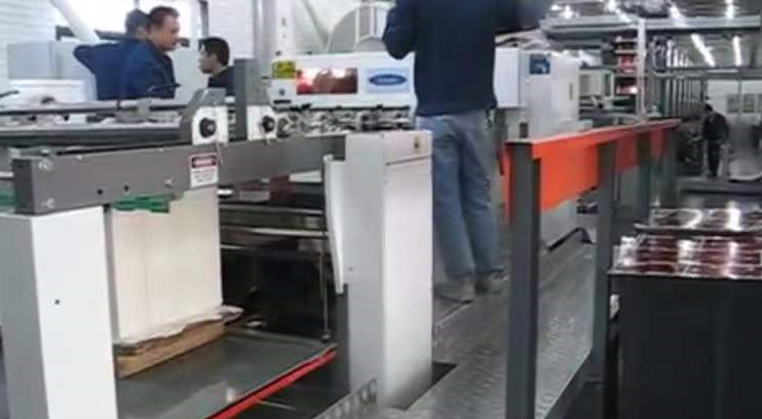

CTP in line with press facility
| Cutting accuracy | +/- 0.1mm |
| Cut off range | 400 – 1500mm (Min. 360mm optional) |
| In feed nip unit | (optional) |
| Reject gate | 1 – 3 sheets (adjustable) |
| Non stop delivery unit | 400 – 1000mm |
| Pile height | 1.2 or 1.5m |
rewinding facility
| Specification | |
|---|---|
| Maximum reel diameter of the foil rewinder | 800mm (other optional) |
| Individual tension unit for film | (optional) |
| Cut of range | 400 – 1500mm (Min. 360mm optional) |
| Cutting accuracy | +/- 0.1mm |
| Specification | |
|---|---|
| Cutting accuracy | +/- 0.1mm |
| Maximum width of embossing or peroration | 1400mm |
| Individual tension unit | Yes |
| Additional web guiding unit | Yes |
